If you want strong, clean welds without spending hours setting up, learning how to wire weld with flux core wire is a game-changer. Whether you’re fixing a fence, building a project, or tackling metal repairs, this method makes welding easier and faster.
In this guide, you’ll discover simple steps and pro tips that help you get perfect welds every time—even if you’re just starting out. Ready to boost your skills and get the job done right? Keep reading, because what you learn here will save you time, money, and frustration.
Choosing The Right Flux Core Wire
Choosing the right flux core wire is a crucial step that can make or break your welding project. The wire you pick affects everything from weld strength to ease of use. Understanding the different types and how to match them with your metal and project needs will save you time and frustration.
Types Of Flux Core Wires
There are mainly two types of flux core wires: self-shielded and gas-shielded.
- Self-shielded flux core wiredoesn’t require an external shielding gas. It’s great for outdoor work or windy conditions because it protects the weld pool on its own.
- Gas-shielded flux core wireneeds an external gas supply, usually CO2 or a gas mix. This type offers cleaner welds and is better for indoor or controlled environments.
Choosing between these depends on your work environment and the finish quality you want. Do you often weld outside or in a garage? That might tip the scale towards self-shielded wire.
Selecting Wire Diameter
The wire diameter affects the weld’s penetration and bead size. Common diameters range from 0.030 inches to 0.045 inches.
- Smaller diameters (0.030”) are better for thin metals and detailed work.
- Larger diameters (0.045”) provide deeper penetration and faster welds on thicker metals.
Think about the thickness of your metal and the type of weld you want. Have you ever struggled with burn-through on thin metal? Using a thinner wire can help control that.
Matching Wire To Metal
Not all flux core wires are compatible with every metal type. Mild steel wires are the most common and versatile.
- Use mild steel flux core wires for general steel welding projects.
- For stainless steel or specialized alloys, you’ll need wires designed specifically for those metals.
Choosing the wrong wire can lead to weak welds or corrosion issues later on. Do you know the exact type of metal you’re working with? Checking this before buying wire will prevent costly mistakes.

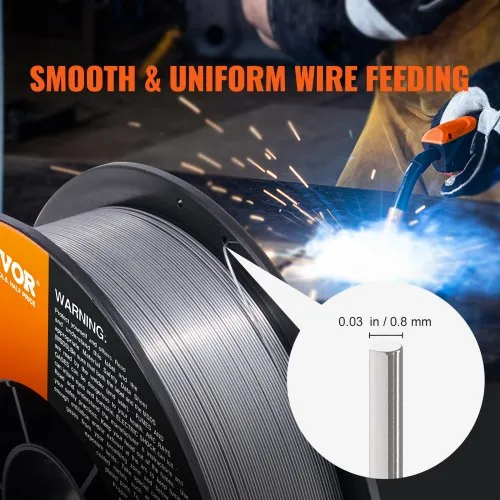

Credit: www.vevor.ca
Setting Up Your Welding Machine
Setting up your welding machine correctly is key to successful flux core welding. Proper setup ensures smooth wire feeding and strong welds. Each adjustment affects the weld quality and your overall safety. Take time to get these settings right before starting your project.
Adjusting Voltage And Wire Speed
Voltage controls the heat of the weld. Set it according to the metal thickness. Higher voltage works well for thicker metals. Wire speed controls how fast the wire feeds through the gun. Match wire speed with voltage for stable arc and clean welds.
- Start with manufacturer’s recommended settings.
- Increase voltage for deeper weld penetration.
- Adjust wire speed to avoid wire burnback or birdnesting.
- Test on scrap metal to fine-tune settings.
Selecting The Correct Polarity
Flux core welding usually uses DC electrode positive (DCEP) polarity. It provides better penetration and smooth arc. Check your machine’s polarity switch. Connect the wire feeder to the positive terminal. Connect the ground clamp to the negative terminal for best results.
Preparing The Welding Gun
Inspect the welding gun before use. Make sure the contact tip is clean and tight. Replace worn or damaged tips for consistent wire feed. Check the nozzle for spatter buildup and clean it regularly. Securely connect the gun to the wire feeder and power source. Proper gun setup reduces arc interruptions and improves weld quality.
Preparing The Workpiece
Preparing the workpiece is a key step for a strong weld with flux core wire. Proper preparation ensures better fusion and fewer defects. Clean, stable, and well-positioned metal helps the welding process flow smoothly.
Cleaning Metal Surfaces
Start by removing dirt, oil, and grease from the metal. Use a clean rag or cloth with a degreaser. Dirt can cause weak welds and spatter. Clean surfaces improve electrical contact and gas coverage.
Clamping And Positioning
Secure the metal pieces firmly using clamps or magnets. Proper positioning prevents movement during welding. Hold the parts at the right angle for a smooth weld bead. Stable workpieces reduce the risk of warping or gaps.
Removing Rust And Paint
Rust and paint stop proper metal fusion. Use a wire brush, grinder, or sandpaper to remove them. Bare metal surfaces allow the flux core wire to create a clean weld. Avoid welding over coatings to prevent contamination.
Credit: www.youtube.com
Welding Techniques For Flux Core Wire
Welding with flux core wire needs specific techniques for strong, clean welds. Proper handling improves weld quality and reduces defects. Focus on gun angle, travel speed, and heat input to get the best results.
Maintaining Proper Gun Angle
Keep the gun at a consistent angle, usually between 10 and 15 degrees from vertical. This angle directs the wire and shielding gas correctly. Too steep or too flat angles cause poor penetration or excessive spatter. Hold the gun steady to maintain a smooth weld bead.
Controlling Travel Speed
Travel speed affects bead shape and weld strength. Move too fast and the weld will be thin and weak. Move too slow and the weld will be wide with extra heat. Find a steady pace that creates a clean, even bead without gaps or overlaps.
Managing Heat Input
Heat input controls weld penetration and metal fusion. Adjust the voltage and wire feed speed to balance the heat. Too much heat can cause burn-through or warping. Too little heat results in weak joints and poor fusion. Watch the weld pool closely for signs of proper heat.
Troubleshooting Common Issues
Welding with flux core wire can sometimes throw unexpected challenges your way. Troubleshooting these common issues quickly keeps your work smooth and helps you avoid wasting materials. Let’s look at some practical ways to tackle the most frequent problems you might face.
Dealing With Porosity
Porosity appears as tiny holes or bubbles in your weld bead, weakening the joint. It often happens because moisture or contaminants get trapped during welding.
To fix this, start by cleaning your metal thoroughly. Remove rust, oil, and dirt before you weld. Check your wire spool too—if it’s old or exposed to humidity, it could be the culprit.
Adjust your welding parameters as well. Sometimes, reducing your travel speed or increasing your voltage slightly can help gases escape better, minimizing porosity. Have you noticed how changing your technique affects the weld surface?
Fixing Wire Feed Problems
Wire feed issues can stop your welding abruptly or cause inconsistent beads. This usually results from incorrect tension, worn drive rolls, or tangled wire spools.
Inspect the drive rolls for wear and replace them if they look flat or grooved. Make sure the wire spool is seated correctly, and the tension is just right—not too tight or loose.
Also, check the liner inside your gun. A dirty or kinked liner can cause feeding jams. Keep your setup clean and well-maintained to avoid frustrating stops mid-weld.
Handling Excess Spatter
Spatter can be a nuisance, sticking to your workpiece and slowing down cleanup. It often happens if your voltage is too high or your gun angle is off.
Try lowering your voltage in small increments and see if that reduces spatter. Holding the gun at a consistent angle, usually around 15 degrees off vertical, helps keep the weld pool steady.
Using anti-spatter sprays or gels can also make cleanup easier. Have you experimented with different settings to find the sweet spot that minimizes spatter on your projects?
Safety Tips For Flux Core Welding
Welding with flux core wire involves intense heat and sparks, making safety a top priority. Ignoring safety can lead to burns, eye injuries, or respiratory problems. How can you protect yourself effectively while working with flux core welding? Let’s break down the essentials that keep you safe and confident at your workbench.
Protective Gear Essentials
Your body needs full protection during flux core welding. Always wear a welding helmet with a proper shade lens to shield your eyes from harmful UV rays and flying sparks. A flame-resistant welding jacket, gloves, and long pants prevent burns from hot metal and sparks.
Don’t forget sturdy, closed-toe boots to protect your feet. Even small sparks can cause injuries if you’re wearing open footwear. Have you checked your gear recently to ensure it’s free from holes or tears?
Ventilation And Fume Control
Flux core welding produces fumes that can irritate your lungs and eyes. Welding in a well-ventilated area reduces these risks significantly. Use exhaust fans or fume extractors to pull harmful gases away from your breathing zone.
If you’re welding indoors, open doors and windows to allow fresh air circulation. Sometimes, wearing a respirator mask adds an extra layer of protection, especially in confined spaces. Are you monitoring the air quality around your workspace?
Safe Handling Practices
Handling welding equipment with care prevents accidents. Always switch off and unplug your welder before making adjustments or changing the wire spool. Keep your workspace organized to avoid tripping over cables or equipment.
Store flux core wire spools in a dry place to prevent rust, which can cause poor weld quality or equipment malfunction. Remember, your attention to small details can prevent major safety hazards. How often do you inspect your tools and materials before starting?
Post-weld Cleanup And Inspection
After finishing your flux core welding, the job isn’t done yet. Post-weld cleanup and inspection are crucial to ensure your weld is strong, clean, and ready for use. Skipping this step can lead to weak spots or corrosion later on, wasting time and materials.
Removing Slag Residue
Flux core welding leaves behind slag, a crusty layer covering the weld bead. You need to remove this slag to see the weld clearly and prepare the surface for any further work.
Use a wire brush or a chipping hammer to gently break and scrape off the slag. Be careful not to damage the weld underneath. Getting rid of all slag prevents imperfections and helps you spot any flaws.
Checking Weld Quality
Once the slag is removed, inspect your weld closely. Look for cracks, holes, or uneven surfaces that might weaken the joint.
Run your hand over the weld to feel for bumps or sharp edges. You can also use a magnifying glass or even dye penetrant tests for a more detailed check. Ask yourself: Does the weld have uniform width and consistent penetration? This helps ensure your work will last under stress.
Performing Repairs
If you find any defects, don’t ignore them. Small cracks or gaps can grow over time, causing failures.
Grind or chip out the flawed areas carefully, then re-weld them using the same flux core wire method. After repairs, repeat the cleanup and inspection steps. Taking the time to fix mistakes now saves you from bigger problems later.
Credit: www.arccaptain.com
Frequently Asked Questions
What Is Flux Core Wire Welding?
Flux core wire welding is a semi-automatic welding process using a tubular wire filled with flux. It creates a shielding gas to protect the weld from contamination. This method is ideal for outdoor welding and works well on rusty or dirty metals.
How To Set Up A Flux Core Wire Welder?
To set up, insert the flux core wire spool into the welder. Thread the wire through the drive rolls and gun liner. Adjust voltage and wire feed speed based on metal thickness. Always wear proper safety gear before starting the weld.
What Materials Work Best With Flux Core Welding?
Flux core welding works best on mild steel, stainless steel, and some cast irons. It excels in outdoor conditions and on rusty or painted surfaces. However, it’s not suitable for aluminum or thin gauge metals without special wire types.
How To Achieve Clean Welds With Flux Core Wire?
Maintain proper wire feed speed and voltage settings. Keep the welding gun at a consistent angle and distance. Clean the metal surface before welding. Use steady, even motions to avoid spatter and ensure strong, smooth weld beads.
Conclusion
Mastering flux core wire welding can boost your welding projects. Start by gathering the right tools and equipment. Practice regularly to improve your technique. Ensure safety by wearing protective gear. Remember, steady hands create cleaner welds. Pay attention to the settings on your welding machine.
Adjust as needed for different materials. Keep your work area clean and organized. This helps in focusing on the task. With time and patience, your skills will grow. Enjoy the process and see your welding improve. Happy welding!
