Ultrasonic metal welding joins metals using high-frequency vibrations and pressure. It creates strong, clean bonds without melting the materials.
This welding method uses ultrasonic energy to connect thin metal sheets quickly and precisely. It works well with metals like copper, aluminum, and even refractory metals. The process produces no sparks, smoke, or harmful fumes, making it safe and eco-friendly.
Ultrasonic metal welding finds uses in electronics, automotive, and battery manufacturing. Portable machines with multiple welding heads allow easy handling and versatile applications. This technique also suits delicate parts, where heat damage must be avoided. Its speed and efficiency reduce production time and costs. Understanding the principles and applications of ultrasonic metal welding helps industries improve quality and performance in metal joining tasks.

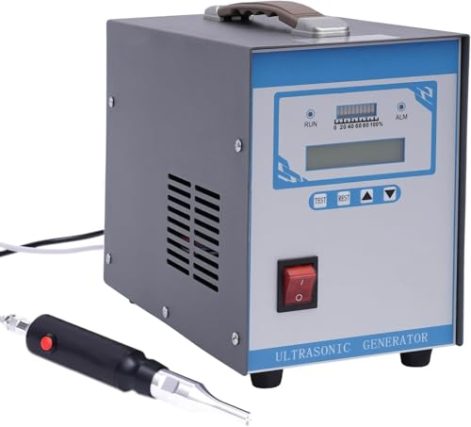

Tbvechi Ultrasonic Plastic Welder
The TBVECHI Ultrasonic Plastic Welder is ideal for professionals and hobbyists who require a reliable and efficient solution for spot welding plastic materials such as ABS, PP, and PE. Whether you’re working in automotive repair, electronics, or crafting industries, this handheld device offers precision and portability, making it perfect for users who need to perform quick, high-quality welds on the go.
Pros:
- High power output of 700W ensuring strong and consistent welds
- Operates at 28KHz frequency for precise ultrasonic spot welding
- Compact and lightweight design enhances portability and ease of use
- Compatible with multiple plastic types including ABS, PP, and PE
- Ergonomic handheld design reduces user fatigue during extended use
Cons:
- Requires basic knowledge of ultrasonic welding techniques for optimal results
- Limited to spot welding applications and may not suit larger plastic fabrication needs
- Blue color might not appeal to all users’ aesthetic preferences
The TBVECHI Ultrasonic Plastic Welder features a powerful 700W motor operating at 28KHz, which allows it to deliver precise and strong ultrasonic energy to weld plastic surfaces effectively. Its ability to work with commonly used plastics such as ABS, PP, and PE makes it a versatile tool for a variety of industrial and craft applications. The handheld design, combined with a compact size measuring just 8.07 inches in height, 10.82 inches in width, and 5.7 inches in length, ensures users can easily maneuver the device in tight spaces or on intricate projects.
Beyond its technical specifications, this spot welding machine provides significant user benefits including reduced welding time and enhanced joint strength, which translates into improved productivity and product durability. The ergonomic design minimizes strain, making it suitable for prolonged use in professional environments. Overall, the TBVECHI Ultrasonic Plastic Welder is a highly efficient and portable solution tailored for anyone needing precise plastic welding without the bulk of larger machinery.
To buy this product, click here.
Ultrasonic Plastic Welding Machine
The Ultrasonic Plastic Welding Machine with 10 pieces of welding heads is ideal for professionals and hobbyists who work with plastic materials like ABS, PP, and PE. This portable, handheld tool is perfect for those who require a high-frequency, efficient, and precise welding solution in industries such as automotive, electronics, and plastic manufacturing. If you need a reliable machine for spot welding plastic components, this device is designed for you.
Pros:
- High power output of 700W ensures strong and consistent welding performance.
- Operates at a frequency of 28KHz for precise and clean welds.
- Includes 10 welding heads for versatility and different application needs.
- Portable and handheld design allows for easy maneuverability and use in various workspaces.
- Compatible with common plastic types such as ABS, PP, and PE.
Cons:
- Requires some technical knowledge to operate effectively.
- Limited to AC110V power supply, which may not be suitable for all regions without adapters.
- The black color, while sleek, may show wear and scratches more easily over time.
The TBVECHI Ultrasonic Plastic Welding Machine stands out for its robust construction and versatility. Its 700W power and 28KHz frequency allow it to deliver strong, precise welds that improve the durability and quality of plastic assemblies. The inclusion of 10 different welding heads enhances adaptability, making it suitable for various welding tasks and plastic thicknesses. This flexibility benefits users who require a multi-functional tool without the need for multiple machines.
Designed by TIGSHOP, this welding machine’s handheld and portable nature provides convenience and ease of use, especially in tight or mobile work environments. It supports a wide range of plastic materials, including ABS, PP, and PE, which are commonly used in many industries. Users benefit from faster production times, reduced material waste, and improved joint strength, making this ultrasonic welder a valuable investment for professionals aiming to enhance their plastic fabrication processes.
To buy this product, click here.
Tmaxcn Ultrasonic Metal Spot Welder
The TMAXCN Brand Ultrasonic Metal Spot Welder for Cu Al Tabs Welding is ideal for professionals and hobbyists who require precise and reliable welding for copper and aluminum tabs. This product is perfect for those involved in battery manufacturing, electronics repair, or metal fabrication, where strong and clean spot welds are essential. If you need a tool that delivers consistent performance for delicate welding tasks, this welder is a great choice.
Pros:
- High precision ultrasonic welding technology ensures clean and strong joints.
- Suitable for welding both copper (Cu) and aluminum (Al) tabs effectively.
- Compact and user-friendly design for easy handling and operation.
- Manufactured by the trusted TMAXCN brand, ensuring quality and durability.
Cons:
- May require some training to master ultrasonic welding techniques.
- Limited to spot welding applications; not suitable for other types of welding.
- Higher initial investment compared to traditional welding methods.
The TMAXCN Ultrasonic Metal Spot Welder features advanced ultrasonic technology that delivers precise energy control, allowing users to achieve superior welding results on delicate copper and aluminum tabs. This precision reduces the risk of damage to sensitive components, making it ideal for high-quality battery pack assembly and small electronic devices. The welder’s ability to produce consistent spot welds enhances productivity and reduces material waste.
Additionally, the ergonomic design and robust build of this spot welder provide comfort and reliability during extended use. Its compatibility with various tab materials ensures versatility, while the TMAXCN manufacturing standards guarantee long-term durability. This combination of features makes the welder a valuable tool for professionals seeking efficient, high-performance spot welding solutions in demanding industrial and repair environments.
To buy this product, click here.
Ultrasonic Welding
The book Ultrasonic Welding of Metal Sheets is ideal for engineers, researchers, and professionals involved in manufacturing and materials science who seek a comprehensive understanding of advanced welding techniques. It is especially beneficial for those working with lightweight metal assemblies in automotive, aerospace, and electronics industries, aiming to improve production efficiency and joint quality.
Pros:
- Provides detailed insights into the ultrasonic welding process and its applications.
- Includes up-to-date research with practical examples from the 2020 publication.
- Written by experts from CRC Press, ensuring authoritative content.
- Comprehensive coverage across 238 pages, suitable for both beginners and advanced users.
Cons:
- May be too technical for casual readers or those without a background in engineering.
- Focuses specifically on metal sheets, limiting its scope to other materials.
- The first edition might lack updates on the latest welding innovations post-2020.
This publication delves into the fundamental principles and practical applications of ultrasonic welding for metal sheets, emphasizing how this technology offers a fast, clean, and energy-efficient alternative to traditional welding methods. Readers will find detailed descriptions of equipment setup, process parameters, and joint design, which help optimize welding outcomes. The book also highlights the significance of ultrasonic energy in achieving strong, defect-free bonds without the need for additional materials or adhesives.
By integrating theoretical knowledge with real-world case studies, the text benefits users by enhancing their ability to troubleshoot issues and improve production workflows. The clear explanations of material behavior under ultrasonic vibrations enable better selection of metals and welding conditions, leading to increased durability and performance of assembled components. Overall, this resource equips professionals with the tools necessary to innovate in the field of metal joining technologies.
To buy this product, click here.
Ultrasonic Welding Of Refractory Metals
The ULTRASONIC WELDING OF REFRACTORY METALS is ideal for engineers, researchers, and industrial professionals who work with tough, high-melting-point metals such as tungsten, molybdenum, and tantalum. This item is perfect for those seeking advanced welding techniques to join these challenging materials without compromising their structural integrity. If you require precise, high-quality welds in refractory metals for aerospace, electronics, or specialized manufacturing, this resource is tailored for you.
Pros:
- Provides detailed insights into ultrasonic welding methods specific to refractory metals.
- Helps improve welding quality and efficiency in difficult-to-join materials.
- Supports innovation in industries requiring strong, reliable metal joints.
- Published by a reputable manufacturer, PN, ensuring credible content.
Cons:
- Publication date is quite dated (1961T), which may limit information on the latest technological advancements.
- Lack of extensive page content (0 pages listed), which might indicate limited depth or format issues.
The ULTRASONIC WELDING OF REFRACTORY METALS focuses on leveraging high-frequency ultrasonic vibrations to create strong, clean welds in metals that are traditionally difficult to join. This technique avoids the need for filler materials or excessive heat, thus preserving the metals’ unique properties. Users benefit from enhanced joint strength and reduced thermal distortion, making it ideal for precision applications.
Additionally, the method promotes faster welding cycles and cleaner results compared to traditional welding processes. For professionals dealing with refractory metals, this translates into improved productivity and reliability. Despite its publication age, the fundamental principles outlined remain valuable for understanding the core concepts of ultrasonic welding in refractory metals.
To buy this product, click here.
Ultrasonic Spot Welder
The Ultrasonic Spot Welder with a Built-In Microcomputer Control Mechanism is ideal for professionals and hobbyists who require precise and efficient plastic welding solutions. This machine is perfect for those working in electronics, automotive, and manufacturing industries where reliable and high-frequency portable welding is essential. Users seeking versatility and ease of use will benefit from its multiple replaceable welding heads and compact design.
Pros:
- Equipped with ten replaceable welding heads for versatile applications
- Built-in microcomputer control ensures precise and consistent welding
- High-frequency ultrasonic technology provides strong, clean welds
- Compact and portable design with manageable weight of 9.92 pounds
- Manufactured by Ynomdusa, a reliable brand in welding equipment
Cons:
- Relatively higher price point compared to simpler welding machines
- May require technical knowledge to fully utilize microcomputer controls
- Limited color options available, only in black
The Ultrasonic Spot Welder stands out due to its advanced microcomputer control mechanism, which allows users to achieve highly accurate and repeatable welds. This feature is particularly beneficial for delicate plastic components, ensuring minimal material distortion and maximum joint strength. The inclusion of ten replaceable welding heads significantly enhances the machine’s adaptability, enabling it to handle various welding tasks without the need for multiple devices.
Its high-frequency ultrasonic welding technology not only speeds up the process but also produces clean, burr-free welds that improve the aesthetic and structural quality of the finished product. Additionally, the machine’s compact dimensions and lightweight design make it highly portable, allowing technicians and engineers to easily transport it between job sites or workstations. Overall, this welding machine offers a powerful combination of precision, flexibility, and convenience for users demanding high-quality ultrasonic plastic welding.
To buy this product, click here.
Ultrasonic Metal Welding
The book Ultrasonic Metal Welding: Principles and Applications of High-grade Bonding Technology is ideal for engineers, researchers, and professionals in the manufacturing and materials science industries who seek an in-depth understanding of advanced bonding techniques. Those involved in industrial welding processes or looking to enhance product durability through innovative metal joining methods will find this resource invaluable.
Pros:
- Comprehensive coverage of ultrasonic metal welding principles and methods.
- Detailed explanation of the applications in various industrial sectors.
- Produced by reputable manufacturers: verlag Moderne Industrie and Stapla Ultrasonics Corporation.
- Concise format with 70 pages of focused technical content.
- Publication date provides foundational knowledge that remains relevant in modern contexts.
Cons:
- Publication date of 1997 may mean some content lacks coverage of latest technological advancements.
- Limited to 70 pages, which might not cover every niche application in exhaustive detail.
- Primarily technical, potentially less accessible for beginners without prior welding background.
This book offers a thorough exploration of the principles behind ultrasonic metal welding, focusing on how high-frequency ultrasonic vibrations create strong, high-grade bonds between metals without the need for additional materials. The text highlights the importance of this technique in improving manufacturing efficiency and product reliability, particularly in electronics, automotive, and aerospace industries. By understanding the underlying physics and equipment involved, users can optimize welding processes and reduce material waste.
Additionally, the book discusses practical applications and benefits such as reduced thermal distortion, faster production times, and enhanced joint strength compared to traditional welding methods. Readers will appreciate the detailed insights into equipment operation and process parameters, enabling them to implement ultrasonic welding with greater confidence and precision. Overall, it serves as a valuable technical reference for professionals aiming to leverage cutting-edge bonding technology in their workflows.
To buy this product, click here.
Ultrasonic Welding Of Lithium-ion Batteries
The Ultrasonic Welding of Lithium-Ion Batteries is an essential resource for professionals involved in the manufacturing and design of lithium-ion battery systems. Ideal customers for this item include engineers, researchers, and technical managers who focus on enhancing the efficiency, durability, and safety of battery systems. Those looking to deepen their understanding of ultrasonic welding techniques within battery assembly will greatly benefit from this comprehensive guide.
Pros:
- Provides in-depth insights into the ultrasonic welding process.
- Authored by the American Society of Mechanical Engineers, ensuring expert content.
- Includes 270 pages of detailed and focused information.
- Compact dimensions make it easy to carry and reference in various settings.
Cons:
- May be too technical for beginners or those without a background in engineering.
- Published in 2017, so some content might not include the very latest advancements.
This book offers a comprehensive exploration of the ultrasonic welding techniques used in the assembly of lithium-ion batteries. With contributions from industry experts, it provides readers with both theoretical knowledge and practical insights necessary for optimizing welding processes. The detailed explanations and examples make it a valuable tool for understanding the intricacies of battery assembly.
Readers will appreciate the book’s structured approach, which covers various aspects of ultrasonic welding, including process parameters, material compatibility, and quality control. The content is meticulously organized to facilitate learning and application in real-world scenarios, making it an indispensable resource for those aiming to improve battery performance through advanced welding techniques.
To buy this product, click here.
Heaxiy Plastic Welding Machine
The HEAXIY Plastic Welding Machine with Electronic Pedal is an ideal purchase for professionals in the textile and manufacturing industries who require efficient and precise welding of materials such as non-woven fabrics and nylon fabrics. It is also suitable for hobbyists or small business owners who work with these materials and seek a reliable tool to enhance their crafting capabilities.
Pros:
- Efficient and quick operation for high productivity.
- Versatile usage for various fabric types.
- Electronic Pedal for hands-free operation.
- Ultrasonic Technology ensures precise welding.
Cons:
- May require a learning curve for beginners.
- Limited to specific fabric types.
The HEAXIY Plastic Welding Machine is equipped with ultrasonic technology, which provides precise and clean welds without the need for additional adhesives or fasteners. This feature is particularly beneficial for those working with delicate fabrics that require gentle yet firm bonding. The inclusion of an electronic pedal allows for hands-free operation, significantly enhancing user convenience and efficiency during the welding process.
Designed with versatility in mind, this machine can handle a range of non-woven and nylon fabrics, making it a valuable asset for businesses that deal with multiple fabric types. The compact design ensures it doesn’t take up much space, making it ideal for workshops with limited space. Overall, this welding machine from HEAXIY offers a combination of precision, efficiency, and user-friendly operation, making it a smart investment for professionals and enthusiasts alike.
To buy this product, click here.
Welding Machine
The Welding Machine with 10PCS Welding Heads 700W 28KHz Ultrasonic Spot Welder is ideal for professionals and hobbyists who require a reliable and efficient tool for plastic welding. It is perfect for those working with materials like ABS, PP, and PE, offering precision and portability. If you need a versatile, handheld device for high-frequency welding tasks, this product is designed to meet those needs.
Pros:
- Includes 10 different welding heads for versatile applications
- High power output of 700W ensuring strong welds
- Operates at 28KHz frequency for efficient ultrasonic welding
- Portable and handheld, making it easy to maneuver
- Suitable for multiple plastic types including ABS, PP, and PE
- Compact design with AC110V power compatibility
Cons:
- Requires some technical knowledge to operate effectively
- Limited to specific plastic materials, not suitable for all types
- May need additional accessories for specialized welding tasks
The 700W ultrasonic spot welder boasts a powerful 28KHz frequency that delivers consistent and clean welds on plastic materials. Its inclusion of 10 different welding heads enhances its flexibility, allowing users to tackle a range of welding projects with precision. The handheld and portable nature of the device makes it convenient for both workshop use and on-site repairs.
Designed by AKaSping and manufactured by LuuChain, this machine combines quality craftsmanship with user-friendly features. Its compatibility with common plastics like ABS, PP, and PE broadens its usability, making it an excellent choice for automotive repairs, electronics casing, and plastic fabrication tasks. Overall, it is a reliable tool for anyone looking to achieve professional-grade plastic welds efficiently.
To buy this product, click here.
Frequently Asked Questions
What Is Ultrasonic Metal Welding Used For?
Ultrasonic metal welding joins thin metal sheets without heat or filler. It’s ideal for batteries, electronics, and automotive parts. The process creates strong, clean bonds quickly and efficiently, preserving metal properties while ensuring precise, high-quality welds.
How Does Ultrasonic Plastic Welding Differ From Metal Welding?
Ultrasonic plastic welding uses high-frequency vibrations to fuse thermoplastics, while metal welding joins metals via pressure and vibration. Plastic welding is common for ABS, PP, and PE, whereas metal welding focuses on conductive materials like copper and aluminum tabs.
Can Ultrasonic Welding Work On Refractory Metals?
Yes, ultrasonic welding can join refractory metals like titanium and molybdenum. It uses high-frequency vibrations and pressure to bond these metals without melting, preserving their strength and corrosion resistance. This makes it suitable for aerospace and medical applications.
What Are The Benefits Of Handheld Ultrasonic Welders?
Handheld ultrasonic welders are portable and user-friendly. They allow spot welding on-site with precision and speed. These welders reduce setup time, increase flexibility, and support various materials like plastics and thin metals, perfect for repair and small-scale production.
How Does Ultrasonic Welding Apply To Lithium-ion Batteries?
Ultrasonic welding joins battery tabs and components without heat damage. It ensures strong electrical connections and maintains battery safety. This method is fast, clean, and ideal for assembling lithium-ion cells in electronics and electric vehicles.
What Features Does A High-frequency Ultrasonic Spot Welder Have?
High-frequency ultrasonic spot welders use 28KHz vibrations and built-in microcomputer controls. They offer adjustable power, multiple replaceable heads, and precise welding for metals and plastics. These features enhance weld quality, repeatability, and operational efficiency.
Conclusion
Ultrasonic metal welding offers a clean, fast, and reliable way to join metals without using heat or filler materials. This technique works well with thin metal sheets and sensitive parts, such as lithium-ion battery tabs and refractory metals. Handheld machines like the TBVECHI and TMAXCN brands provide great control and flexibility for various jobs.
The ability to switch welding heads helps adapt the process to different materials like copper, aluminum, and plastics such as ABS or PP. This method reduces damage to parts and saves time compared to traditional welding. It also supports precise, strong bonds needed in electronics and automotive industries.
As technology advances, ultrasonic welding will continue to grow as a popular choice for metal and plastic joining. Understanding its basic principles and applications can help users select the right equipment for their needs. Simple, efficient, and versatile—ultrasonic metal welding remains a valuable tool for many industries today.
