Understanding the correct MIG wire speed and voltage settings is essential for quality welding. This chart helps you match wire feed speed with voltage for better welds.
Welding with MIG wire requires precise control of both speed and voltage. These settings affect the weld’s strength, appearance, and penetration. Using the right wire feed speed ensures the wire melts smoothly and avoids defects. Voltage controls the arc’s heat and stability during welding.
Different wire types, sizes, and thicknesses need specific settings for best results. For example, flux core wires and solid wires each have their own ideal ranges. This MIG wire speed and voltage chart provides a clear guide to select the correct settings quickly. It helps welders achieve consistent and strong welds without guesswork. Follow the chart to improve welding efficiency and reduce errors.
Magnet Chart – Awg Sizes & Properties Of Electrical Cables/conductors
The Magnet Chart- AWG Sizes & Properties of Electrical Cables/Conductors is ideal for electricians, engineers, and DIY enthusiasts who frequently work with wiring and need quick, reliable access to wire size information. This handy Wire Size Chart AWG is perfect for those who want a durable, easily accessible reference tool that can be conveniently placed on any metal surface in workshops, garages, or job sites.
Pros:
- Made from a flexible magnetic sheet, allowing it to stick securely to any metal surface.
- Compact size of 6″ x 9″ makes it portable and space-saving.
- Clear and detailed information on AWG sizes and electrical cable properties for quick reference.
- Lightweight design (0.26 pounds) ensures easy handling and transport.
- Durable and resistant to wear, making it suitable for frequent use in various environments.
Cons:
- Limited to use on metal surfaces due to its magnetic backing.
- White color may show dirt or stains more easily in rugged workspaces.
This Magnet Chart provides a practical solution for anyone needing immediate access to wire size and properties without flipping through manuals or digital devices. Its magnetic backing means it can be attached directly to metal toolboxes, electrical panels, or machinery, keeping essential information at your fingertips. The flexible magnetic sheet ensures it contours well to curved surfaces, enhancing its usability in various work environments.
Featuring detailed data on AWG sizes and conductor properties, this chart helps users make informed decisions about wire selection, improving safety and efficiency on the job. Its compact dimensions allow it to fit comfortably in tight spaces, while the lightweight design makes it easy to carry around. Overall, this magnetic wire size chart is a valuable tool that combines convenience, durability, and clarity for professionals and hobbyists alike.
To buy this product, click here.
Mig Welder Roll Wire Feed Motor
The Mig Welder Roll Wire Feed Motor is ideal for professional welders and hobbyists who require a reliable and efficient wire feeding mechanism for their welding projects. If you work with flux core wire or need precise control over wire feeding speed, this tool is designed to enhance your welding experience by providing smooth and consistent wire delivery. It’s perfect for those looking to upgrade their current setup with a compact and easy-to-use device.
Pros:
- Compact size with dimensions of 3.94 x 4.72 x 7.87 inches, making it easy to integrate into various welding machines.
- Operates on DC 24V 10W, ensuring low power consumption while maintaining high performance.
- Supports wire feeding speeds from 2 to 13 meters per minute, allowing customizable control for different welding needs.
- Compatible with 0.8-1.0mm flux core wire, suitable for a wide range of welding applications.
- Designed by Hongzer, a trusted brand in welding equipment manufacturing.
- Easy to use with straightforward installation, reducing downtime and setup complexity.
Cons:
- Limited to specific wire sizes (0.8-1.0mm), which may not suit all welding tasks.
- May require compatibility checks with certain welder models before purchase.
This wire feed motor stands out due to its precise control over wire feeding speed, which is crucial for achieving clean and strong welds. The adjustable speed range from 2 to 13 m/min allows users to tailor the wire feed rate according to the welding material and technique, enhancing weld quality and reducing wire wastage. Its compact design does not compromise power, providing consistent performance on a modest 24V DC power supply.
Additionally, the motor’s compatibility with 0.8 to 1.0mm flux core wire makes it versatile for many common welding jobs. The ease of installation and use means both beginners and seasoned welders can benefit from its functionality without a steep learning curve. Overall, this product brings together efficiency, reliability, and convenience, making it a valuable addition to any welding setup.
To buy this product, click here.
Pgn Solid Mig Welding Wire
The PGN Solid MIG Welding Wire – ER70S-6 is ideal for professional welders and hobbyists who require a reliable and efficient welding wire for various projects. If you work with mild steel and need an all-position wire that delivers consistent performance with minimal cleanup, this product is designed for you. It is especially suitable for those who prioritize low spatter and high-quality welds in gas welding applications.
Pros:
- Low spatter ensures cleaner welds and reduces post-weld cleanup time.
- High levels of deoxidizers improve weld quality and reduce porosity.
- All-position usability allows for versatile welding applications.
- 10-pound spool provides ample wire for extended projects.
- Compatible with mild steel, making it suitable for a wide range of tasks.
Cons:
- Only available in copper color, which may not suit aesthetic preferences.
- May require specific gas mixtures to optimize performance.
The PGN Solid MIG Welding Wire – ER70S-6 features a diameter of .023 inch, which is ideal for precision welding tasks. Its composition includes high levels of deoxidizers, which significantly reduce weld defects such as porosity and improve overall weld integrity. This ensures strong, durable weld joints that can withstand stress and environmental factors. Additionally, the wire’s low spatter characteristic reduces the need for post-weld cleaning, saving time and effort for users.
This welding wire’s versatility is another key advantage, as it performs well in all welding positions, including horizontal, vertical, and overhead. This makes it a practical choice for various projects, whether you are repairing automotive parts, fabricating metal structures, or working on industrial applications. Manufactured by PGN Bearings, this product promises consistent quality and reliability, making it an excellent investment for both professionals and enthusiasts.
To buy this product, click here.
Yeswelder Magnesium Aluminum Welding Wire
The YESWELDER Magnesium Aluminum Welding Wire, ER5356 .030-Inch Diameter, is ideal for professional welders and hobbyists who work with aluminum and magnesium alloys. If you require a reliable, high-quality welding wire that ensures strong, clean welds for automotive, marine, or industrial applications, this product is tailored for you.
Pros:
- High-quality ER5356 alloy ensures excellent corrosion resistance and weld strength.
- .030-inch diameter provides precise control for detailed welding tasks.
- 1-pound strong ABS plastic spool offers durability and easy handling during use.
- Compatible with MIG welding machines for versatile application.
Cons:
- Limited spool size may require frequent replacements for large projects.
- Primarily suited for aluminum and magnesium, not ideal for other metal types.
The YESWELDER Magnesium Aluminum Welding Wire features a premium ER5356 alloy, known for its excellent strength and corrosion resistance. This makes it especially effective for welding aluminum and magnesium components that demand durability in harsh environments. The .030-inch diameter ensures precise welds, allowing users to achieve clean and strong joints without excessive spatter or defects.
Additionally, the wire is wound on a sturdy 1-pound ABS plastic spool, which protects the wire from damage and moisture, maintaining its performance quality. This design also facilitates smooth feeding during MIG welding, reducing downtime and enhancing productivity. Overall, this welding wire combines quality materials with user-friendly features to meet the needs of both professional welders and DIY enthusiasts working on specialized metal projects.
To buy this product, click here.
Welding Leads Assembly Set
The 300A 16㎡ Copper Clad Aluminum Cable Dinse 10-25 Connector Plug Welding Leads Assembly Set is ideal for professional welders and serious hobbyists who require a reliable and durable welding connection system. If you work with ARC Stick MMA Mini Welding Rod Welders and need a high-quality electrode holder and ground clamp set, this product offers excellent performance and longevity. It is perfect for those seeking efficient welding leads that provide strong conductivity and ease of use.
Pros:
- High-quality copper clad aluminum cables ensure excellent electrical conductivity and durability.
- Includes a 9.8ft welding electrode holder and a 6.5ft stick plier ground clamp for versatile and convenient welding setups.
- Dinse 10-25 connector plug provides secure and stable connections, reducing the risk of disconnections during welding.
- Compatible with most ARC Stick MMA Mini Welding Rod Welders, enhancing usability across various welding tasks.
- Manufactured by TOOL4YOU, ensuring trusted quality and craftsmanship.
Cons:
- The copper clad aluminum material, while cost-effective, may not conduct as efficiently as pure copper cables.
- The length of the cables may be restrictive for very large workspaces or industrial-scale welding projects.
This welding leads assembly set features robust 16㎡ copper clad aluminum cables that balance conductivity and durability, making it suitable for frequent use in demanding environments. The included 10-25 Dinse connector plug ensures quick and reliable attachment to compatible welding machines, minimizing downtime and enhancing workflow efficiency. The carefully designed electrode holder and ground clamp deliver a comfortable grip and secure hold on welding rods and workpieces, improving welding accuracy and safety.
Users will benefit from the set’s compatibility with a wide range of ARC Stick MMA welding machines, making it a versatile choice for both repair work and new fabrication projects. Additionally, the cable lengths are optimized to provide sufficient reach without excessive bulk, allowing for easier maneuverability in tight or awkward spaces. Overall, this assembly set from TOOL4YOU offers a practical and reliable solution for welders seeking quality, convenience, and dependable performance in their welding accessories.
To buy this product, click here.
Mig Welder Roll Wire Feed Motor
The Mig Welder Roll Wire Feed Motor DC 24V 15W Soldering Wire Feeder Machine is ideal for professional welders and DIY enthusiasts who require a reliable and efficient wire feeding solution for their welding projects. If you frequently work with flux core wire in sizes 0.8mm and 1.0mm, this machine is designed to enhance your welding precision and productivity. It is especially suitable for those looking to automate the wire feeding process to achieve consistent welds with minimal manual effort.
Pros:
- Compact and lightweight design for easy portability and space-saving usage
- Automatic wire feed ensures smooth and consistent welding performance
- Compatible with both 0.8mm and 1.0mm flux core wires for versatility
- Durable construction from trusted brand Walfront ensures long-lasting use
- Low power consumption with 15W motor for energy efficiency
Cons:
- May require additional setup or adjustment for optimal wire tension
- Limited to DC 24V power supply, which might not suit all welding setups
- Dimensions may not fit all compact welding stations
This wire feed motor offers a robust and efficient solution for feeding welding wire automatically, which significantly reduces the chances of wire tangling and inconsistent feed rates. Its DC 24V 15W motor delivers steady power that supports smooth operation, making it easier to achieve professional-grade welds. The compact dimensions (Height: 3.94 inches, Width: 4.72 inches, Length: 7.87 inches) make it convenient to integrate into most welding machines without occupying excessive space.
Furthermore, the compatibility with both 0.8mm and 1.0mm flux core wire allows users to switch between different wire thicknesses depending on the welding task, increasing versatility. The automatic feeding mechanism not only saves time but also enhances the overall welding quality by maintaining a constant wire speed, which reduces defects and improves the structural integrity of welded joints. Overall, this wire feeder machine is an excellent choice for those looking to upgrade their welding setup with a reliable and efficient wire feeding solution.
To buy this product, click here.
Atlaswelder Mig Welding Wire
The ATLASWELDER MIG Welding Wire – ER70S-6 .030-2 Pound Spool is ideal for professional welders and DIY enthusiasts who require a reliable and efficient welding wire for all-position gas welding. If you seek a wire that offers low spatter and enhanced weld quality, this product is designed to meet your needs, ensuring clean and precise welds across various metal types.
Pros:
- Low spatter results in cleaner welds and less post-weld cleanup
- High levels of deoxidizers improve weld quality and reduce porosity
- Suitable for all-position gas welding, offering versatility
- Consistent wire feed for smooth welding operation
- Compact 2-pound spool size ideal for easy handling and storage
Cons:
- Smaller spool size may require frequent replacement for large projects
- Requires compatible MIG welding equipment and shielding gas
The ATLASWELDER MIG Welding Wire is formulated with a high concentration of deoxidizers which significantly reduces impurities during welding, resulting in stronger and cleaner welds. Its low spatter characteristic not only enhances the visual finish but also minimizes the time spent on cleaning up after welding, increasing overall productivity. The wire’s compatibility with all-position welding makes it an excellent choice for complex projects that require welding in various orientations.
Designed by ATLAS WELDER, this welding wire ensures consistent feeding and reliable performance, which is crucial for both precision and efficiency. Whether you’re working on automotive repairs, metal fabrication, or construction tasks, this wire provides durability and versatility. Its manageable 2-pound spool size makes it convenient for both professional workshops and hobbyists, balancing capacity with ease of use.
To buy this product, click here.

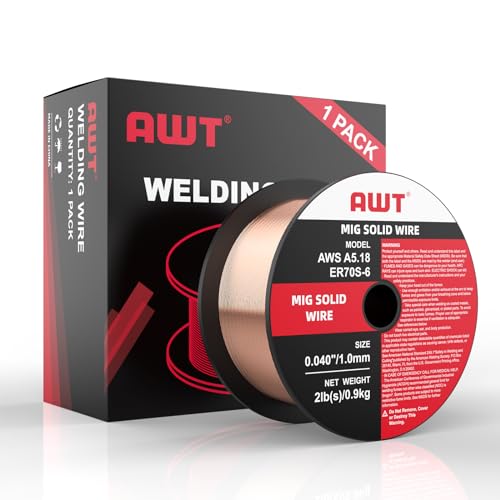

Awt Solid Mig Welding Wire
The AWT Solid MIG Welding Wire, ER70S-6 is ideal for professional welders and hobbyists who require a reliable and efficient welding wire for carbon steel projects. If you are involved in automotive repair, construction, or metal fabrication and need a wire that offers consistent performance with minimal cleanup, this product is designed for you. Its low splatter design makes it especially suitable for users seeking a cleaner weld and improved finish quality.
Pros:
- Low splatter formula reduces post-weld cleanup time
- High-quality solid carbon steel wire ensures strong, durable welds
- Compatible with gas MIG welding processes for stable arc performance
- Comes in a convenient 2-pound spool, easy to handle and store
- Manufactured by AWT, a trusted brand known for welding supplies
Cons:
- Only available in a single spool pack, which may require frequent replacement for large projects
- Requires appropriate shielding gas, adding to overall welding setup costs
The AWT Solid MIG Welding Wire features a diameter of .040″, optimized for precise welding tasks that demand both strength and smooth results. Its ER70S-6 classification guarantees excellent weldability on carbon steel with enhanced resistance to rust and corrosion. This makes it a versatile choice for various metalworking applications, from thin sheet metal to thicker steel components.
Users benefit from the wire’s superior feedability and stable arc, which reduces spatter and improves weld bead appearance. The 2-pound spool size balances convenience and capacity, making it suitable for both small-scale jobs and intermittent use without frequent spool changes. Overall, this welding wire supports efficient, high-quality welds that save time and effort in both professional and DIY settings.
To buy this product, click here.
Mig Welder Roll Wire Feed Motor
The Mig Welder Roll Wire Feed Motor is ideal for professional welders and DIY enthusiasts who require precise control over wire feeding during welding projects. If you are looking for a reliable and efficient wire feeder machine to enhance your welding performance, especially when working with wires ranging from 0.6-1.0mm, this product is designed to meet your needs. It suits users who prioritize consistent wire feed speed and durable equipment for both small and medium-scale welding tasks.
Pros:
- Compact dimensions (Height: 3.94 inches, Width: 4.72 inches, Length: 7.87 inches) for easy integration into welding setups.
- Wide wire feeding speed range from 1.5 to 12 m/min allowing for versatile welding applications.
- Powered by a DC 24V 10W motor ensuring efficient and steady wire feeding performance.
- Compatible with wires sized between 0.6-1.0mm, suitable for various welding projects.
- Manufactured by Thincol under the trusted Slaige brand, ensuring quality and durability.
Cons:
- Limited to wire sizes between 0.6-1.0mm, may not support thicker wires.
- Requires proper power source with DC 24V specification, which might not be available in all setups.
- No advanced digital controls for wire speed adjustment, which could limit precision for some users.
The Mig Welder Roll Wire Feed Motor is engineered to provide consistent and reliable wire feeding, a critical component in achieving high-quality welding results. Its compact size makes it an excellent choice for users with limited workspace or those who need to retrofit it into existing welding equipment. The motor’s power rating of 10W combined with the DC 24V operation ensures that wire feeding remains smooth and continuous, reducing the chances of wire jams and interruptions during welding. This reliability translates to increased productivity and better weld quality.
Additionally, the adjustable wire feeding speed from 1.5 to 12 meters per minute allows users to tailor the wire feed rate to the specific welding task, whether it’s light-duty or more demanding work. This flexibility is particularly beneficial for achieving precise welds and accommodating different materials. While the machine supports a specific wire diameter range, it covers the most commonly used wire sizes in MIG welding, making it a practical choice for many professionals and hobbyists alike.
To buy this product, click here.
Tooliom Er70s-6 Mild Steel Mig Solid Welding Wire
The TOOLIOM ER70S-6 .030″(0.8 mm) Mild Steel MIG Solid Welding Wire is ideal for professional welders and DIY enthusiasts who require reliable and consistent welding performance. If you are looking for a high-quality welding wire compatible with popular MIG welders like the TL-200M and TL-250M Pro, this product is designed to meet your needs. It is perfect for those working on mild steel projects that demand precision and durability.
Pros:
- High compatibility with TL-200M and TL-250M Pro MIG welders
- Consistent wire diameter of .030″ (0.8 mm) for smooth welding
- Comes in a convenient 10-pound spool for extended use
- Manufactured by TOOLIOM, ensuring quality and reliability
- Ideal for mild steel applications, providing strong and clean welds
Cons:
- Limited to mild steel welding, not suitable for other metals
- Only available in .030″ (0.8 mm) diameter, no size variations
The TOOLIOM ER70S-6 welding wire boasts a precise diameter of .030″ (0.8 mm), which ensures excellent feedability and stable arc performance. This feature is particularly beneficial for users who need clean, spatter-free welds on mild steel components. The solid welding wire design enhances the overall welding strength, making it suitable for various fabrication and repair tasks.
Additionally, the 10-pound spool size offers convenience for continuous welding sessions without frequent spool changes, saving time and improving workflow efficiency. Being manufactured by TOOLIOM, the wire adheres to strict quality standards, providing welders with confidence in their material choice. Its compatibility with well-known MIG welders like the TL-200M and TL-250M Pro further adds to its versatility and appeal.
To buy this product, click here.
Frequently Asked Questions
What Is The Ideal Mig Wire Speed For Flux Core Wire?
The ideal MIG wire speed for flux core wire ranges between 2 to 13 meters per minute. Adjust speed based on wire diameter and material thickness for smooth feeding and consistent weld quality.
How Do Voltage Settings Affect Mig Welding Performance?
Voltage controls the arc length and heat during MIG welding. Higher voltage creates a longer arc and deeper penetration. Adjust voltage to match wire feed speed and material thickness for optimal welds.
What Wire Sizes Are Compatible With Mig Welding Machines?
Common MIG wire sizes include. 023″,. 030″,. 035″, and. 040″ diameters. Choose wire size based on material type and thickness to ensure efficient welding and strong joints.
How To Choose The Right Mig Wire For Aluminum Welding?
Use ER5356 or similar aluminum MIG wire for aluminum welding. These wires offer excellent strength, corrosion resistance, and smooth feeding with compatible welding machines.
What Are Benefits Of Low Splatter Mig Wires?
Low splatter MIG wires reduce post-weld cleanup and improve weld appearance. They contain deoxidizers that enhance weld quality and reduce defects, saving time and effort.
Conclusion
Understanding the MIG wire speed and voltage chart helps you set your welder correctly every time. Matching the right wire feed speed with the correct voltage ensures smooth welding and strong joints. Using the proper settings reduces splatter and improves weld quality.
Different wires, like ER70S-6 or flux core types, need specific speeds and voltages for best results. Remember to adjust settings based on wire thickness and the metal you are welding. Keeping these basics in mind will make your welding work easier and more efficient.
Whether you use a MIG wire feeder motor or a spool of solid MIG wire, the chart guides you to the right setup. This simple tool is a must-have for both beginners and experienced welders. With proper wire speed and voltage, your welds will look cleaner and last longer.
A reliable chart saves time and prevents common welding problems.
